Validate Azure DevOps Pipeline Variables Before PR

Azure DevOps has no built-in validation for variable group references. It happily accepts any $(myVariable) syntax and only tells you something is wrong when the job actually runs. By then, you've wasted minutes (or hours) waiting for the pipeline to reach that step.

I wanted to shift this validation left. Way left. Before the PR itself.

The Problem with Variable References

Consider a typical pipeline YAML

variables:
  - group: my-app-secrets
  - name: buildConfiguration
    value: Release

stages:
  - stage: Build
    jobs:
      - job: BuildJob
        steps:
          - script: |
              echo "Building $(buildConfiguration)"
              echo "Using connection string: $(connectionString)"
              echo "API key: $(apiKey)"

The buildConfiguration variable is defined inline. But connectionString and apiKey? They're supposed to come from the my-app-secrets variable group. If that group doesn't exist, or if someone renamed connectionString to dbConnectionString, you won't know until the pipeline runs.

Enter azdolint

I built a CLI tool in Rust with the help of Ralph.

The Ralph Wiggum Experiment

Can a “while loop” make AI a better coder? Explore the Ralph Wiggum technique: a persistent iteration method that successfully automated a DB migration.

Dariusz ParysDariusz Parys

The Tool validates your pipeline YAML against your actual Azure DevOps variable library.

The tool is called azdolint and it's available on crates.io

cargo install azdolint

How It Works

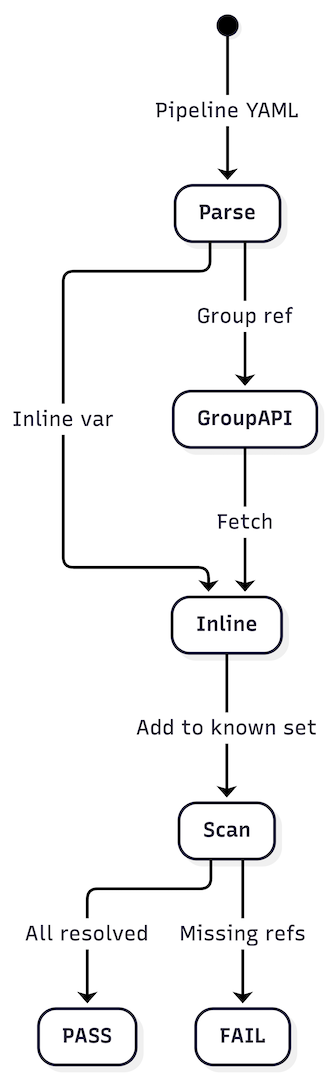

The linter parses your YAML, identifies all variable sources (inline definitions and group references), queries the Azure DevOps API to fetch actual variable group contents, and then scans for any $(variable) references that can't be resolved.

Prerequisites

The tool requires the Azure CLI with the Azure DevOps extension:

# Install the Azure DevOps extension
az extension add --name azure-devops

# Login to Azure
az login

# Optionally set your default organization
az devops configure --defaults organization=https://dev.azure.com/YOUR_ORG

Basic Usage

Point it at your pipeline YAML and specify your Azure DevOps organization and project:

azdolint --pipeline-file ./azure-pipelines.yml \
  --organization myorg \
  --project myproject

Sample output

When everything validates:

Azure DevOps Pipeline Validator
================================

Variable Groups
---------------
  [PASS] Variable group 'ProductionSecrets' exists
  [PASS] Variable group 'DatabaseConfig' exists

Variable References
-------------------
  [PASS] Variable 'ConnectionString' found in group 'DatabaseConfig'
  [PASS] Variable 'ApiKey' found in group 'ProductionSecrets'

================================
RESULT: PASSED
All 4 check(s) passed successfully.
================================

When something's wrong:

Azure DevOps Pipeline Validator
================================

Variable Groups
---------------
  [PASS] Variable group 'ProductionSecrets' exists
  [FAIL] Variable group 'MissingGroup' not found
         Suggestion: Create the variable group in Azure DevOps at:
         https://dev.azure.com/myorg/myproject/_library?itemType=VariableGroups

Variable References
-------------------
  [PASS] Variable 'ApiKey' found in group 'ProductionSecrets'
  [FAIL] Variable 'UndefinedVar' not found in any referenced group
         Suggestion: Add this variable to one of the referenced variable groups,
         or verify the variable name is spelled correctly.

================================
RESULT: FAILED
2 of 4 check(s) failed.
================================

The suggestions with direct Azure DevOps URLs make it easy to jump straight to the fix.

Fine Tuning Edge Cases

The linter base created was a good starting point. But it didn't work for some pipelines in my active project. So I finetuned the linter and threw all pipeline edge cases at it, updated the corresponding parsing method and now this is a pretty solid linter. The following pieces will be handled

Variable Groups

variables:
  - group: 'MyVariableGroup'

Inline Variables

Both list and map formats work:

# List format
variables:
  - name: BuildConfiguration
    value: 'Release'

# Map format
variables:
  BuildConfiguration: 'Release'

Template Conditionals

Complex conditional includes are parsed correctly:

variables:
  - ${{ if eq(parameters.environment, 'prod') }}:
    - group: 'ProductionSecrets'
  - ${{ else }}:
    - group: 'DevelopmentSecrets'

Multi-Scope Support

Variables can be defined at different scopes: top-level, stage, or job. The linter tracks scope inheritance correctly:

variables:
  - group: global-vars

stages:
  - stage: Dev
    variables:
      - group: dev-vars
    jobs:
      - job: Deploy
        variables:
          - name: localVar
            value: something
        steps:
          - script: |
              echo $(globalVar)   # From global-vars
              echo $(devVar)      # From dev-vars
              echo $(localVar)    # From job scope

Each reference is validated against the variables available in its scope.

Template Files

Template files are automatically detected. When you run the linter directly against a template, it shows a warning and skips validation since templates depend on their parent pipeline context for variable resolution.

CI/CD Integration

Beside having the linter run locally on your machine, you can also use it easily in your CI to catch anything before the PR is merged

# azure-pipelines-pr.yml
trigger: none
pr:
  branches:
    include:
      - main

jobs:
  - job: ValidatePipeline
    pool:
      vmImage: ubuntu-latest
    steps:
      - script: |
          cargo install azdolint
          azdolint --pipeline-file azure-pipelines.yml \
            --organization $(System.CollectionUri) \
            --project $(System.TeamProject)
        displayName: 'Validate Pipeline Variables'

Not Perfect, But Good Enough

Variable Group Permissions

The Azure CLI identity running the linter needs read access to the variable groups. If you're validating against production variable groups from a PR pipeline, make sure the service connection has appropriate permissions.

System Variables

The linter is ignoring system variables. This could be an enhancement to also check mistyping of those. But I didn't go this route yet.

Template Conditionals

This adds complexity. As the linter needs to traverse all branches. I still think there might be cases where this fails.

Curious? Want to Contribute?

The source is on

GitHub - dariuszparys/azdo-linter

Contribute to dariuszparys/azdo-linter development by creating an account on GitHub.

GitHubdariuszparys

Hope this helps.
